UTS-2000 Film Thickness Measurement System
JASCO’s film-thickness measurement system is a nondestructive, non-contact analysis method using the latest interferometric technology to provide rapid film thickness measurements.
The thickness of the opitaxial layer, substrate, etching (residual layer), liquid crystal cell gap, and other semiconductor layers dramatically impacts semiconductor device performance. Management of layer thickness during the manufacturing process is extremely crucial for production of large yields of stable devices.
JASCO’s film thickness measurement system is a non-destructive, non-contact analysis method using the latest interferometric technology to provide rapid film thickness measurements. Utilizing a proprietary frequency analysis method, the sample interference spectrum is converted to a spatialgram and the film thickness calculated with a high degree of accuracy. This integrated system offers the film thickness measurements required for the exacting standards of the semiconductor industry including high-speed sample mapping; a wide thickness measurement range; and a refined operating environment, supporting a wide range of analysis requirements from process use to R&D. JASCO offers near-infrared and mid-infrared models according to the thickness measurements desired.
JASCO offers near-infrared and midinfrared models according to the thickness measurements desired.
Wide range of film thickness measurement capability
Enables film thickness (substrate thickness) measurements from 0.25 to 750 µm.
Highly accurate film thickness measurements
Acquisition of precision data using a high-accuracy interferometer and high throughput optics.
Support for multi-wafer cassettes
0ptional automated cassette sampling system, enabling fully automated measurement for wafer cassettes.
Simplified operating system
Various conditions for measurement, mapping, and film thickness calculations are configured as preset recipes and managed in a recipe table. Measurement of film thickness is initiated by simply selecting a required method from the recipe table and clicking the 'Measure' button.
|Measurement Method||FT-IR interference method for film thickness measurements|
|Measurement Configuration||Reflection, Transmission (option)|
|Objectives||Near infrared: Lends objectives (4X) and Cassegrain objectives
(15X, 30X) Mid-infrared: Cassegrain objectives (15X, 30X)
|Focus Mechanism||11mm stroke|
|Sampling Area||20 X 20 to 1200 X 1200 µm|
|Sample Positioning||Verification of measurement area using an integrated CCD camera|
|Film Thickness||0.25 to 750 µm (for Si)|
|Reproducibility||±0.005 µm or less (for Si with identical measurements)|
|Stage Movement||200 X 200 mm (Other options available)|
|Minimum Step Size||2 µm|
Data Processing Unit
|Operating System||Windows 7 Professional|
|UPS (Uninterruptible Power Supply)||Maintains PC and display power for 15 minutes after a power failure|
|System Control||JASCO Spectra Manager software; Optics and X-Y stage control;
Wafer cassette system control (option)
|Type||Integrated vibration isolation table|
Dimensions and Weight
|Dimension and weight||1095 (W) x 862 (D) x 1763 (H) mm, Approx. 300 kg (excluding protrusions or optional casste loading system)|
|Power Consumption||300 VA|
|Dimensions||1240 X 810 X 1550 mm (excluding protrusions or optional cassette loading system)|
|Power Requirement||300 VA|

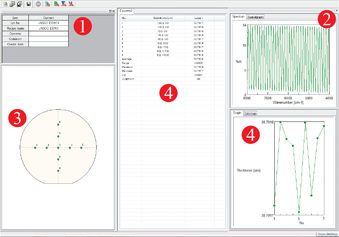

Intuitive Software for Film Thickness Measurements
1. Measurement Information
Input information for an analysis
2. Fringe or Spatialgram Spectrum
3. Measurement Point Map
4. Film Thickness Distribution Graph
High Measurement Reproducibility
The following table shows consecutive measurement results for a Silicon epitaxial layer.The error of 10 consecutive measurements is less than ±0.001 µm. These figures demonstrate the extremely reproducible film thickness measurement capability.
Reproducibility of consecutive measurements
Measured Value (µm)
