Portable FTIR Systems - VIR-100/200/300 Series

portable-ft-ir
The VIR-100/200/300 series are compact, lightweight, flexible FT-IR systems. The collimated entrance and exit ports make it an ideal instrument for a wide range of applications. The standard instrument includes a hermetically sealed interferometer, DLATGS detector, high intensity source, KRS-5 windows and automatic alignment. Options can be added for increased sensitivity, optional spectral ranges including NIR, and battery operation.

Request Quote

Please enter your name.
Please enter a subject.
Please enter a message.

or call 0800 773 274

Features

System Description

The VIR-100/200/300 series are compact, lightweight, flexible FT-IR systems. The collimated entrance and exit ports make it an ideal instrument for a wide range of applications. The standard instrument includes a hermetically sealed interferometer, DLATGS detector, high intensity source, KRS-5 windows and automatic alignment. Options can be added for increased sensitivity, optional spectral ranges including NIR, and battery operation.



System Features

  • Three models available: VIR-100, 200 and 300.
  • Simple and easy-to-use operability by combination of a variety of attachments and measurement/analysis program
  • Parallel configuration of up to three attachments in one system by newly developed external connection optics
  • Universal optical base allowing users to build customized systems
  • Eco-friendly system including sleep-mode as well as a compact & space-saving design
  • High-speed monitoring using optional 40 Hz rapid scan
  • Highly reliable data acquisition based on self-diagnostics & validation function

VIR Series FTIR Systems

VIR-100

The VIR-100 provides a basic functionality and low resolution measurement capability at a reasonable price.

  • Economical, general-purpose instrument
  • Spectral Range: 7,800 to 350 cm-1
  • Resolution: 0.9 - 16 cm-1
  • S/N ratio: 18,000:1 (DLATGS)


VIR-200

The ViR-200, with high resolution offers an excellent choice for gas analysis applications and other critical experiments such as measurement of impurities in semiconductor processing.

  • Maximum resolution for both solids and gases
  • Spectral range: 7,800 to 350 cm-1
  • Max resolution 0.4 - 16 cm-1
  • S/N ratio: 22,000:1 (DLATGS)


VIR-300

The VIR-300 provides a NIR interferometer for a wide range of near-infrared applications. Optional sampling systems include a fiber optic interface with sample probes and a range of diffuse reflectance accessories for quality control applications.

  • NIR configuration including CaF2 beam splitter, halogen source
  • Spectral range: 15,000 to 2,200 cm-1
  • Max resolution 0.4 - 16 cm-1

Portable FTIR VIR-100/200/300 Specifications


VIR-100
VIR-200
VIR-300
Wavenumber Range 7000 ~ 400 cm-1 7800 ~ 350 cm-1 15000 ~ 2200 cm-1
Resolution 4 ~ 16 cm-1 0.5 ~ 16 cm-1 0.5 ~ 16 cm-1
S/N Ratio 12000:1 15000:1 3000:1
Detector
• Standard DLATGS
• Option M-MCT, N-MCT, W-MCT
InGaAs, InSb, M-MCT, N-MCT, W-MCT
Beam Splitter
• Standard
Ge/KBr
Si/CaF2
• Option
-
Broadband KBr
Light Source
• Standard
High-intensity ceramic source
Halogen lamp
• Option   Halogen lamp (Auto switching) High-intensity ceramic source
Interferometer
45° Michelson Interferometer
Purge
Available
Drive Mode DSP electromagnetic drive,
Mechanical bearing
DSP electromagnetic drive, Mechanical bearing
Self-learning type of DSP active control
Rapid Scan N/A
High-intensity ceramic source
Communication
USB 2.0
Dimension & Weight
270 (W) x 236.5(D) x 245 (H) mm, 12 kg

Details

Accessories and Attachments

Selection of Accessories

The most suitable VIR system can be configured, by selecting accessories matched with applications required. The newly developed MultiChamberIR attachment allows the users to switch three measurement modes from transmittance, ATR and DR in one attachment. Such multi-measurement modes in one attachment are best suited to incoming inspection of variable samples such as powder, solid and liquid.

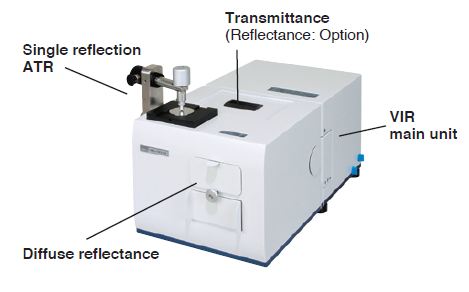

Combination with MultiChambIR Attachment

Up to three measurement modes in one attachment

Combination with MultiChambIR Attachment

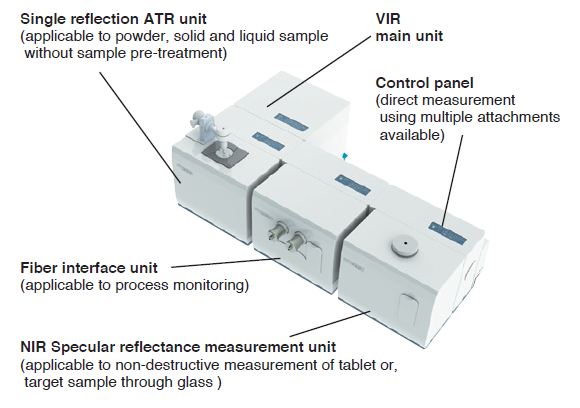

External connection optics allows the users to install up to three attachments in one system and to use each attachment simply by switching. Furthermore, Universal optical base enables the users to configure freely customized optics by simply putting mirrors and sample holders onto the base. Therefore, even a large sample or an attachment which cannot fit in the ordinary compartment, can be applied.

Combination with External connection optics

Combination with External connection optics

A wide variety of measurement attachment is available. Furthermore, Universal optical base allows the users to configure freely customized optics by simply putting mirrors and sample holders onto the bench.

Name of Attachment Main Application / Feature
SmartTech Attachment Qualitative measurement of powder and solid sample
Fiber Interface Attachment Process monitoring
Long Path Gas Cell Attachment Quantification of gas concentration
Single Reflectance ATR Attachment Surface analysis of powder, solid and liquid sample
NIR Specular Reflectance Attachment Non-destructive measurement of food and medicine
IRT-1000 Micro IR Attachment Foreign object
Autosampler Attachment High throughput analysis of drugs, etc.
Transmission Measurement Attachment Qualitative / quantitative analysis of film sample
MultiChambIR Attachment Three measurement modes (Transmittance/reflectance, diffusive reflectance and ATR) in one attachment

System Configuration Examples - according to specified purpose

Dedicated accessory configurations include gas cells, microscopes, NIR fiber optics, and open path analyzers. The MPS sample compartment allows connection to commercially available FT-IR accessories. The system is designed for high performance in the laboratory and in the field.

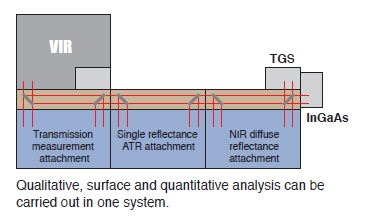

External connection optics

Qualitative, surface and quantitative analysis can be carried out in one system.

External Connection Optics Configuration

Foreign objective analysis

A wide range of sample size from centimeter down to micron can be applied to.

Foreign objective analysis Configuration

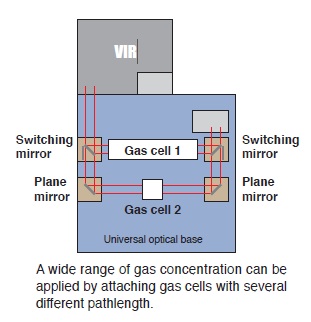

Universal optical base (gas analysis)

A wide range of gas concentration can be applied by attaching gas cells with several different pathlength.

Universal optical base (Gas Analysis) Configuration
